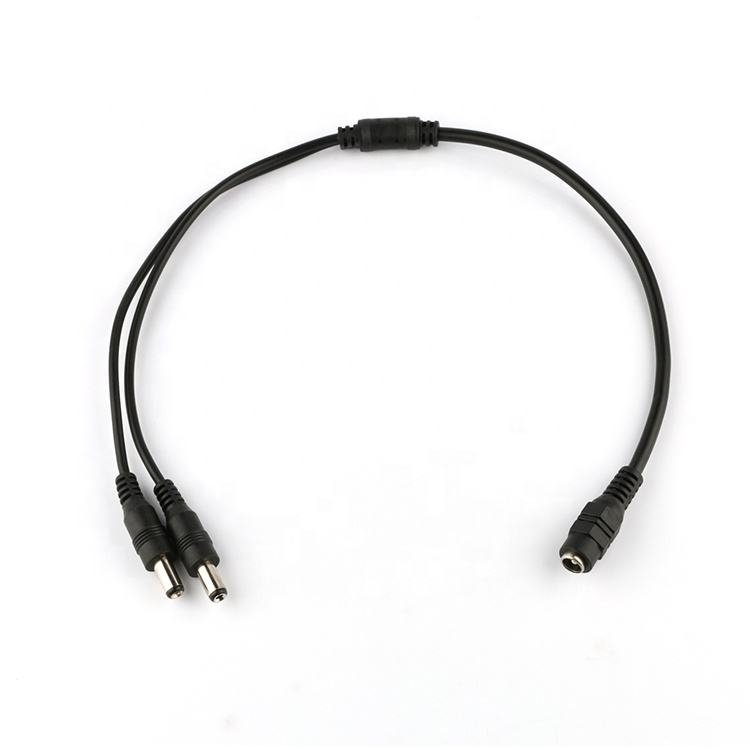

A DC power splitter cable is a simple electrical cable designed to connect a single DC power source, like a power adapter, to multiple devices at the same time. It’s essentially a “Y” cable for power, with one input connector and several output connectors.

How It Works

A DC power splitter cable is a passive device, meaning it doesn’t have any electronic components to regulate power. It simply divides the single power source into two or more parallel paths. All connected devices share the same voltage from the source, while the total current (amperage) drawn by all the devices is split among them.

It’s crucial to ensure that the total current draw of all the devices does not exceed the maximum current capacity of the power supply. If you connect too many devices or devices that draw a lot of power, you can overload the power supply, which may cause it to fail, overheat, or damage the connected devices.

Common Features and Applications

DC splitter cables are most often used with low-voltage applications, and they are defined by a few key characteristics:

Connector Type: The most common connector for these cables is a barrel jack, which has a specific outer and inner diameter, such as 5.5mm x 2.1mm or 5.5mm x 2.5mm.
Number of Splits: They are available in various configurations, from a simple 1-to-2 split to 1-to-8 splits or more.
Typical Uses:
- CCTV systems: Powering multiple security cameras from a single power supply.
- LED strip lights: Running several sections of LED lighting from one power adapter.
- Networking equipment: Powering multiple low-power networking devices like modems, routers, or Wi-Fi access points.
- DIY projects: Used in various electronics projects to simplify power distribution.
